Jacking Up Your Car

From Hyundaipedia, Find Your Way

[edit] Overview

This is a guide on how to jack up your car properly.

[edit] Tools

• A Jack

[edit] Instructions

ALWAYS put your vehical in gear and lock your E-brake when jacking your vehical up, and use jack stands.

[edit] Jacking Points

Photos of the jacking points

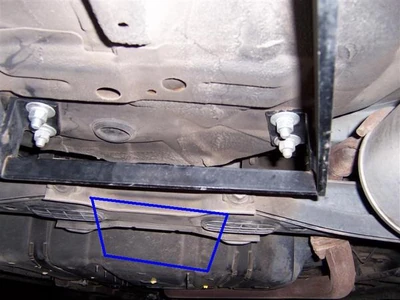

Rear Jack Point: for use with a floor jack

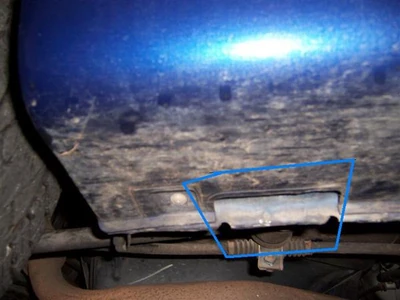

Side jack point, one on each corner. This is where you stick your stock jack. There's four places, one for each tire.

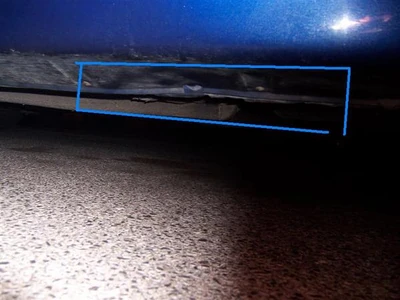

If you do not use the side jack points, this will happen

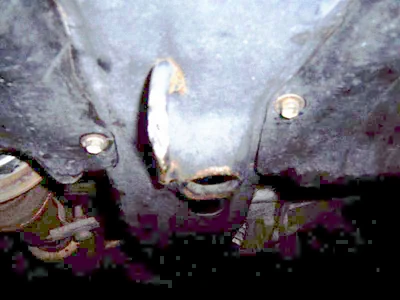

The front picture is kind of dim. It's right behind the tow point. It is designed for a bottle jack, but a standard or shop floor jack will function just fine.

[edit] Using a Floor Jack

Pictures explaining how to jack up your car with a floor jack

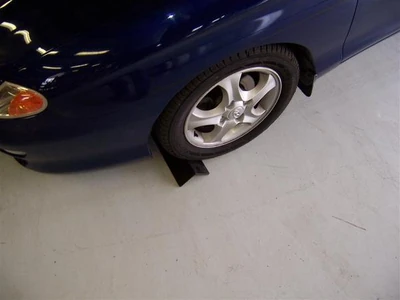

Place wheel chocks in front of vehical

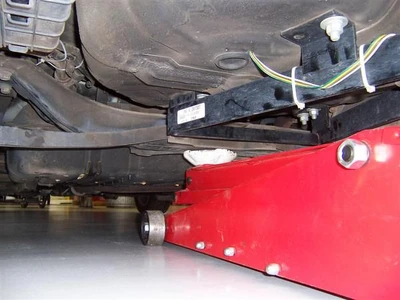

The rear jacking point

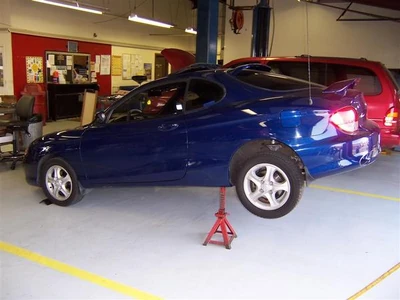

Vehical on jackstands

Note: You should use jackstands in pairs and never go further then 2 clicks from the end. Always use the steel reenforced areas of the vehical.

[edit] Using a Lift Ramp

Have a buddy ground guide you onto a lift ramp ensure your vehical is centered, use wheel chocks, and lift your vehical up.

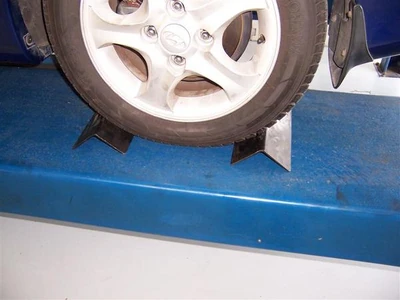

Wheel chocks are your friends and they prevent accidents.

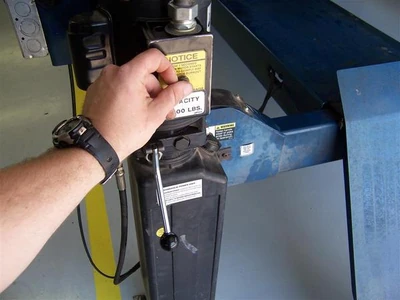

Lift your vehical to the desired hight and then go past that until you hear another set of clicks. The clicking point is where your vehical will settle when fully raised.

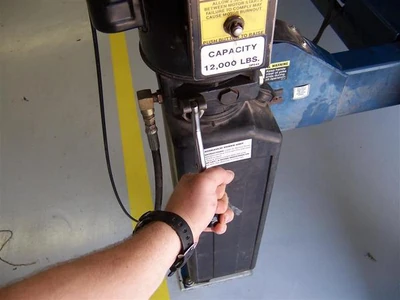

Lower the lift until it comes to rest on the hard stops (clicks)

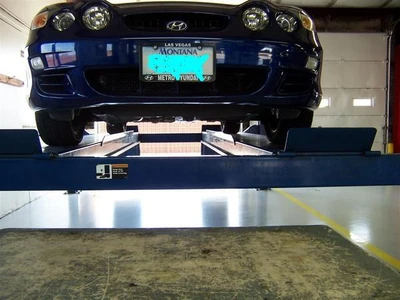

Should look like this when finished

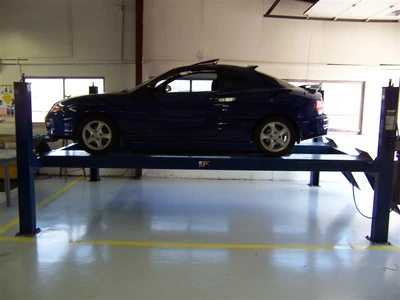

When you get to desired hight, go a little higher and then operate the release to let the lift land on the catches.

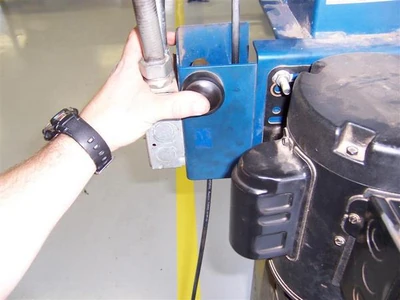

When it's time to lower the vehical, lift it up a little, then operatate the catch release and lower the vehical.
