Changing Struts
From Hyundaipedia, Find Your Way
| DIY Difficulty Level |
| Moderate |
| Navigate: Main_Page ...Do It Yourself ...Changing Struts
Overview • Models and Years • Tools Needed • Instructions • Similar Pages • External Links |
Overview
| Models and Years: |
You can use this guide for either replacing your struts, or installing aftermarket ones.
Tools
- ratchet set
- philips screw driver
- adjustable wrench
- pliers
- impact wrench recommended
- Corona w/lime (not pictured)
Instructions

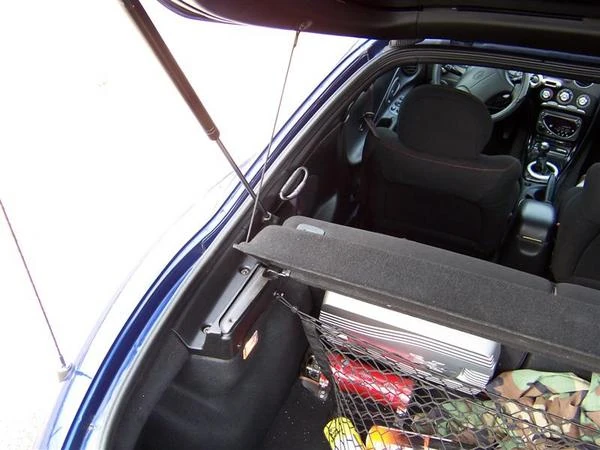

- Remove storage net and rear hatch cover

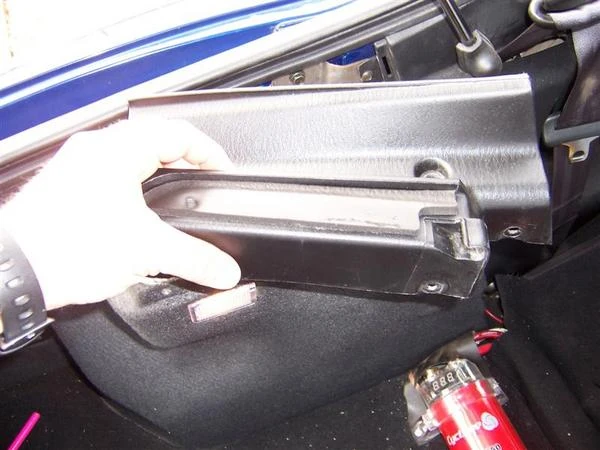

- Remove 5 philips screws securing rear strut cover trim

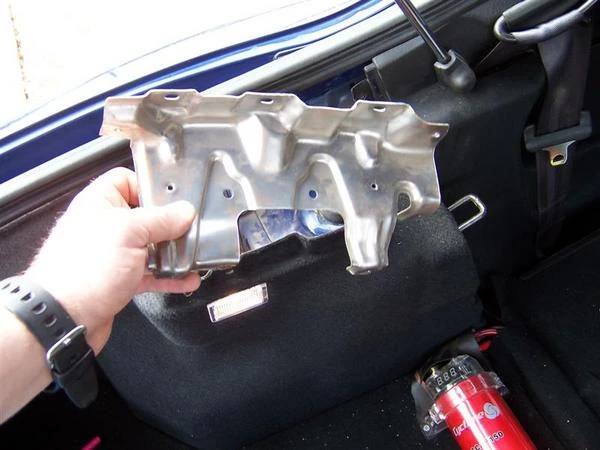

- Remove 2 philips screws and 3 10mm bolts securing strut cover

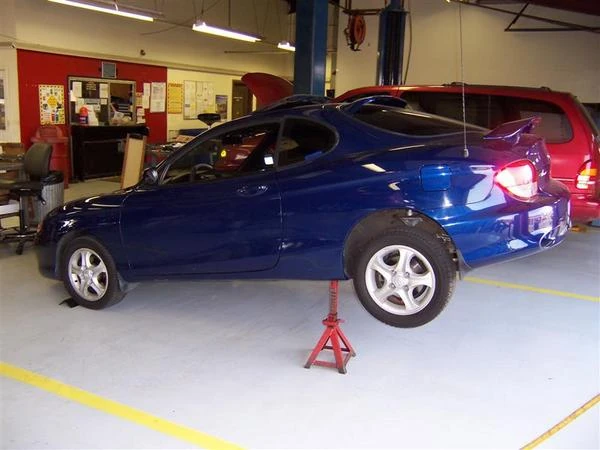

- Jack up your car

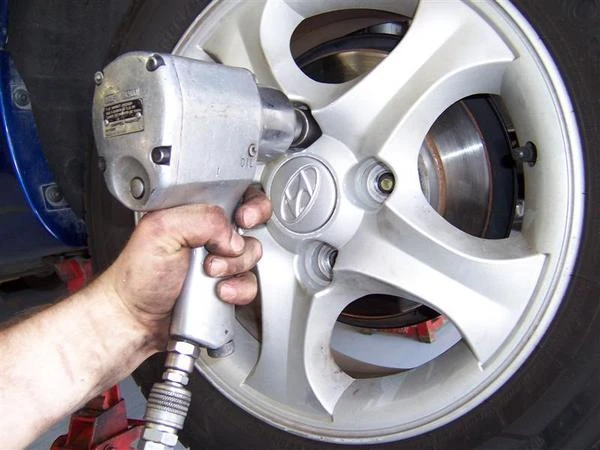

- Remove 4 13/16 lug nuts

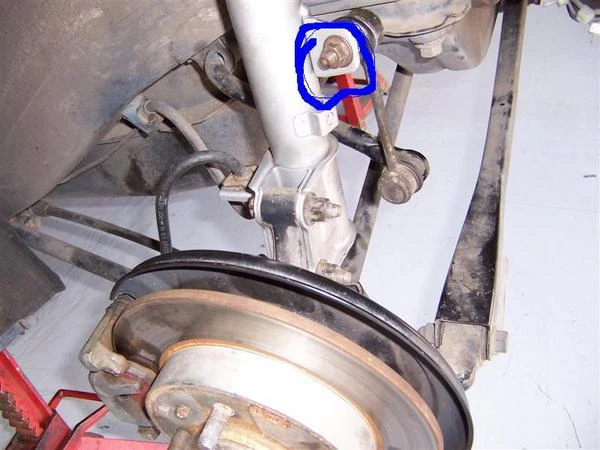

- Remove 1 14mm nut from sway bar ball joint
- Note: If nut will not turn at first, use a crescent wrench or needle nose vice grips on the back side of the joint, at the end of the boot.

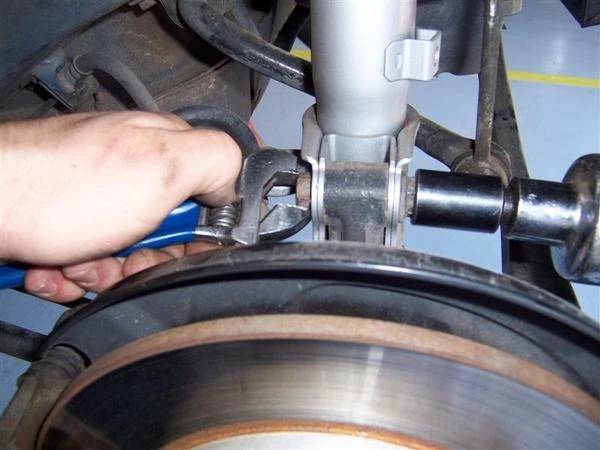

- Loosten 2 17mm nuts from bolts.

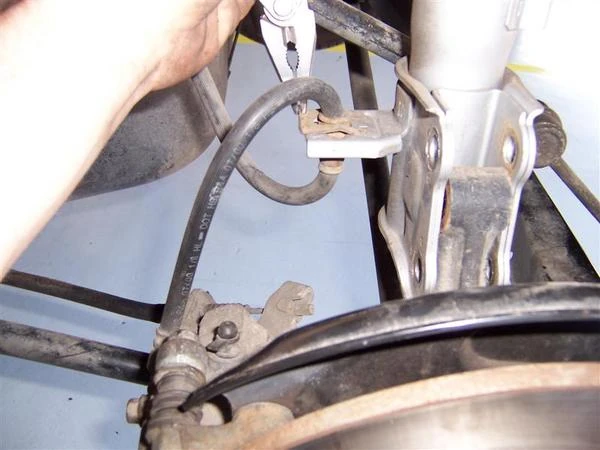

- Using a pair of pliers, remove the retainer clip from the brake line and move brake line out of the way.
- Remove 2 bolts from bottom of strut and allow to hang.

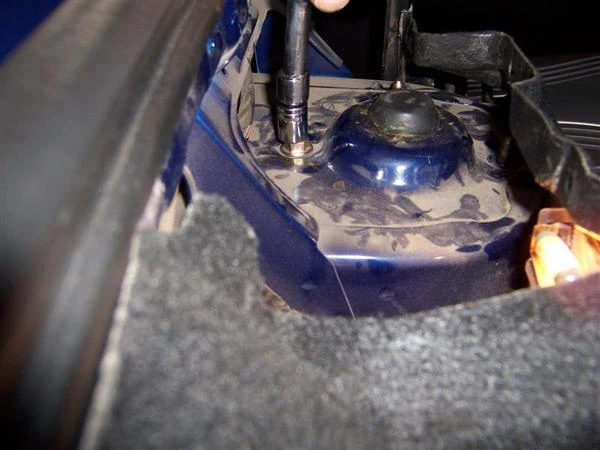

- Remove 3 12mm or 14mm nuts from the top of the strut.

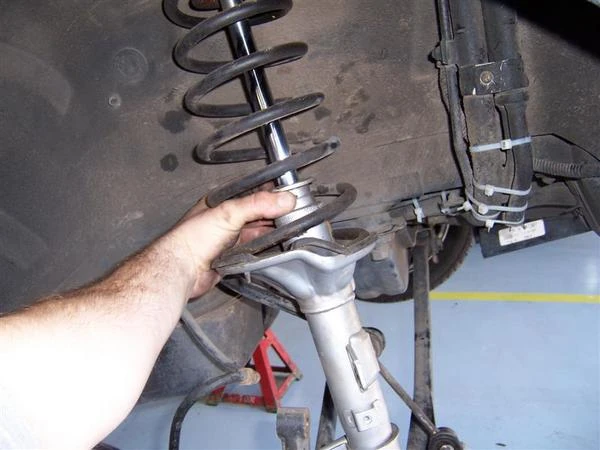

- Remove strut from car.

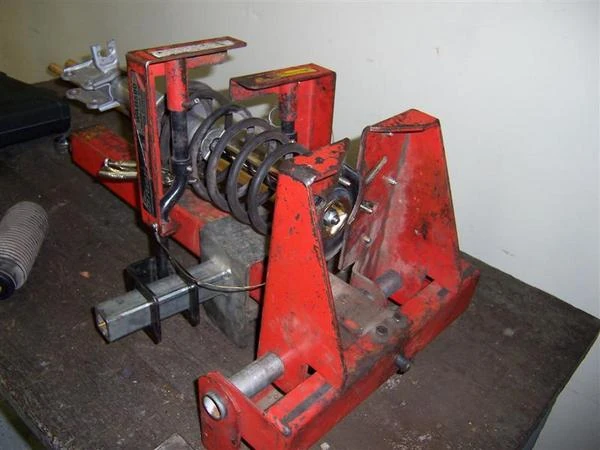

- Place strut in spring compressor and compress spring.

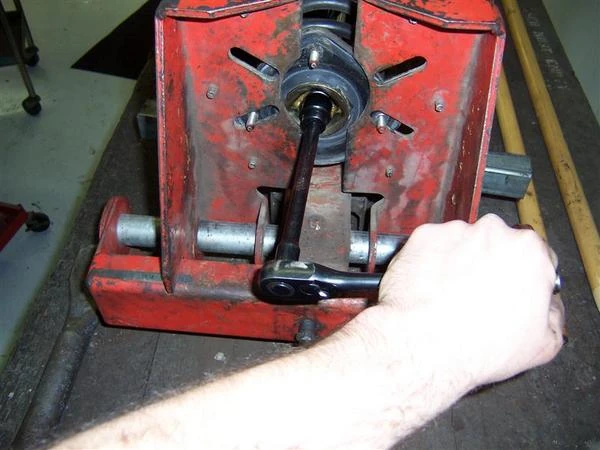

- Remove 17mm bolt from top of spring.
- Note: Basically, here in the next steps you should make the new one look just like the old one did, just newer.
- Slide strut out from spring.
- Place rubber portion and dust boot from old strut assy onto new strut assy.
- Place new strut in spring/upper strut assy.
- Ratchet new nut on top of new strut.
- Decompress strut.
- replace strut
Installation is the reverse of removal
